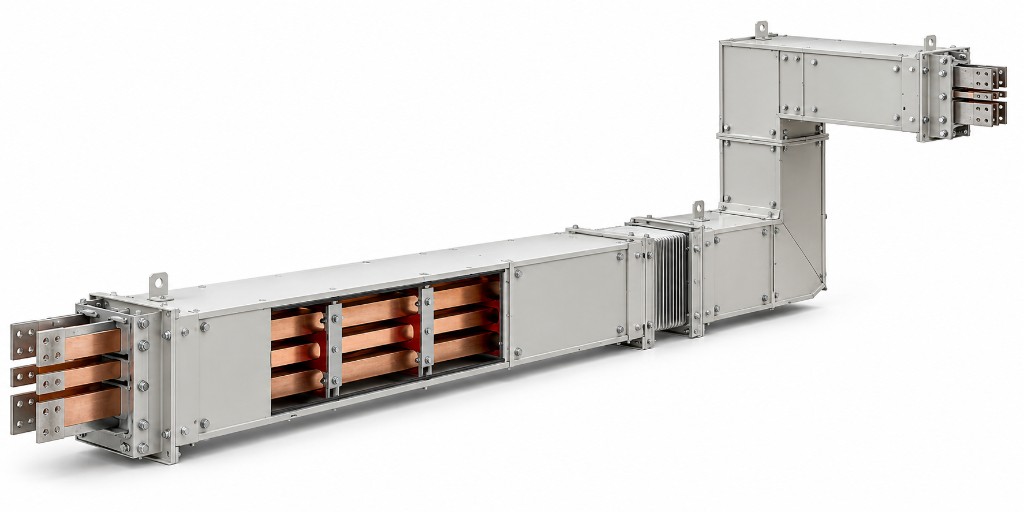

Bus Tie Duct / Busbar Trunking
Air-insulated, non-segregated bus-tie duct with copper busbars to 6000 A. Sized for ampere and fault duty within IEC temperature-rise limits.
- Type
- Air-insulated, non-segregated BTD
- Rating
- Up to 6000 A
- Busbars
- Copper, tin-plated joints
- Enclosure
- Sheet steel to 4000 A; aluminium above 4000 A
Key Features
Sized for ampere and fault duty
Busbar trunking and bus-tie ducts for high-current links.
Expansion and flexible transformer links
Expansion and flexible transformer links — engineered, tested, and commissioned in-house.
Non-magnetic enclosure above 4000 A
Non-magnetic enclosure above 4000 A — engineered, tested, and commissioned in-house.
Lineup
| Type | Air-insulated, non-segregated BTD |
|---|---|
| Rating | Up to 6000 A |
| Busbars | Copper, tin-plated joints |
| Enclosure | Sheet steel to 4000 A; aluminium above 4000 A |
| Scope | Design through commissioning |
Explore available configurations with our engineering team.
Share duty class and form of assembly — we'll scope the right lineup for your commission.
Downloads
Catalogs, technical data, and certificates — request what you need for this assembly.
